Neurosurgical Tables – Mizuho

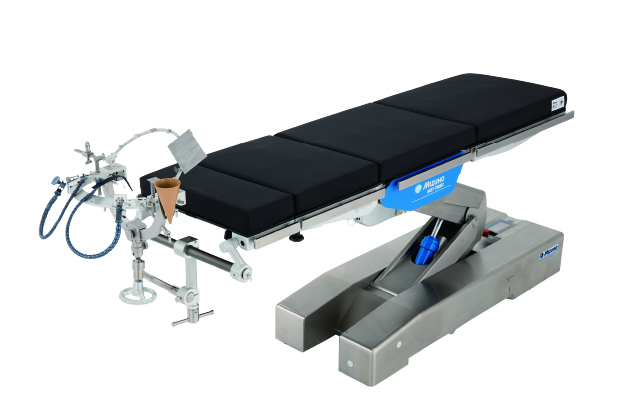

NEW MST-7300 Table Series
Style, Stability, Support, Systematicity, & Safety
- Widest space and access around the table top
- The jackknife (z-shaped) elevation system allows for a minimum height of 15.7 inches (7300B) and 17.7 inches (7300BX)
- Maximum weight capacity increased to 800 lbs (360kg).
- Positioning Options: Elevation, Trendelenburg, Tilt, Lateral Tile, X-Y Sliding, ISO Center, Parkbench, Concord, and Half Sitting Position
Contact your local Mizuho America sales representative for more information.
| MST-7300BX | MST-7300B | |
| 18-351-70 | 18-350-70 | |
| GTIN Code | 4946329295009 | 4946329294996 |
| Classification | 1 | 1 |
| Table Top Dimensions | 82.7 in (L) * 19.7 in (W) | 82.7 in (L) * 19.7 in (W) |
| Base Dimensions | 52.6 in (L) * 19.7 in (W) | 52.6 in (L) * 19.7 in (W) |
| Table Weight | 805 lbs | 750 lbs |
| Supply Voltage | AC 100-240V, 50-60Hz | AC 100-240V, 50-60Hz |
| Power Input | 700VA | 700VA |
| Battery Power | 24V | 24V |
| Evauation Range | 17.7 in – 43.3 in | 15.7 in – 41.3 in |
| Trendelenburg | Head 45°down / 20°up | Head 45°down / 20°up |
| Lateral Tilt | 25° Right / Left | 25° Right / Left |
| Back Section | 90° Up / 30° Down | 90° Up / 30° Down |
| Leg Section | 50° Up / 45 ° Down | 50° Up / 45 ° Down |
| Head Section | 60° Up / 90 ° Down | 60° Up / 90 ° Down |
| Operating Speed | HIGH/ LOW | HIGH/ LOW |
| Brake | Locked / Unlocked | Locked / Unlocked |
| Weight Capacity | 800 lbs | 800 lbs |
| Standard Accessories | Pads, Remote Control, AC cable | Pads, Remote Control, AC cable |
| Return to level | Trendelenburg, Lateral, Back, Leg, X-sliding | Trendelenburg, Lateral, Back, Leg |
| XY Sliding | Available | |
| Y Sliding | 3.9 in to Head / 3.9 in to Leg | |
| X Sliding | 80mm Right / Left | |
| ISO Center on / off | Available | |
| Stop level position | Available | Available |
| Touch panel ( body ) | Available | Available |
| Controller with LCD and E button | Available | Available |
